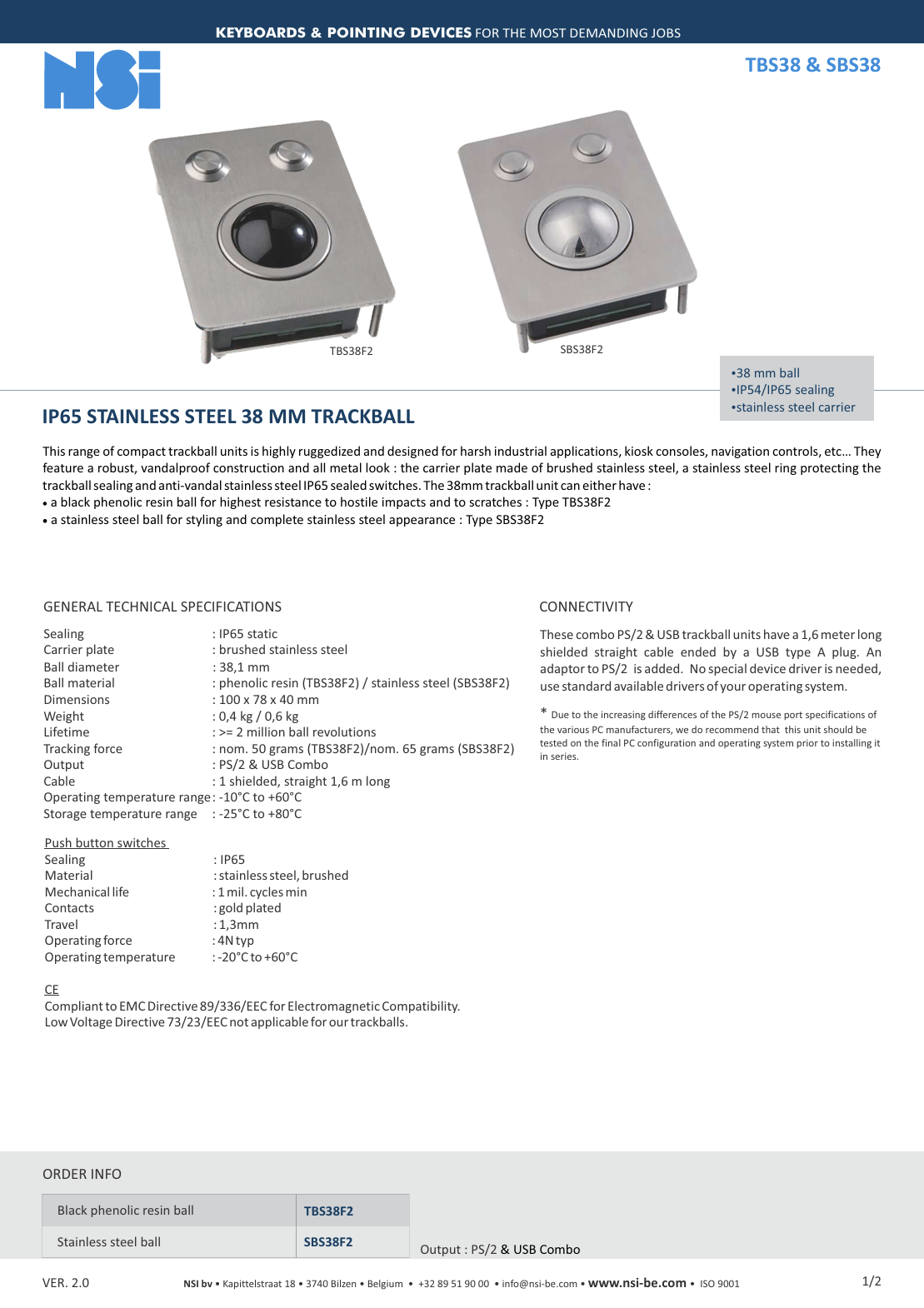

IP65 STAINLESS STEEL 38 MM TRACKBALL
This range of compact trackball units is highly ruggedized and designed for harsh industrial applications, kiosk consoles, navigation controls, etc… They feature a robust, vandalproof construction and all metal look : the carrier plate made of brushed stainless steel, a stainless steel ring protecting the trackball sealing and anti-vandal stainless steel IP65 sealed switches. The 38mm trackball unit can either have :
· a black phenolic resin ball for highest resistance to hostile impacts and to scratches : Type TBS38F2
· a stainless steel ball for styling and complete stainless steel appearance : Type SBS38F2
Mô tả
GENERAL TECHNICAL SPECIFICATIONS
- Sealing: IP65 static
- Carrier plate: brushed stainless steel
- Ball diameter: 38.1 mm
- Ball material: phenolic resin (TBS38F2) / stainless steel (SBS38F2)
- Dimensions: 100 x 78 x 40 mm
- Weight: 0,4 kg / 0,6 kg
- Lifetime: >=2 million ball revolutions
- Tracking force: nom. 50 grams (TBS38F2)/nom. 65 grams (SBS38F2)
- Output: PS/2 & USB Combo
- Cable: 1 shielded, straight 1,6 m long
- Operating temperature range: -10°C to +60°C
- Storage temperature range: -25°C to +80°C
Push button switches
- Sealing: IP65
- Material: stainless steel, brushed
- Mechanical life: 1 million cycles min
- Contacts: gold plated
- Travel: 1,3mm
- Operating force: 4N typ
- Operating temperature: -20°C to +60°C
CONNECTIVITY
These combo PS/2 & USB trackball units have a 1,6 meter long shielded straight cable ended by a USB type A plug. An adaptor to PS/2 is added. No special device driver is needed, use standard available drivers of your operating system.
Due to the increasing differences of the PS/2 mouse port specifications of the various PC manufacturers, we do recommend that this unit should be tested on the final PC configuration and operating system prior to installing it in series.
Dưới đây là chi tiết thông số kĩ thuật: tbs38-sbs38-stainless-steel-trackballs
