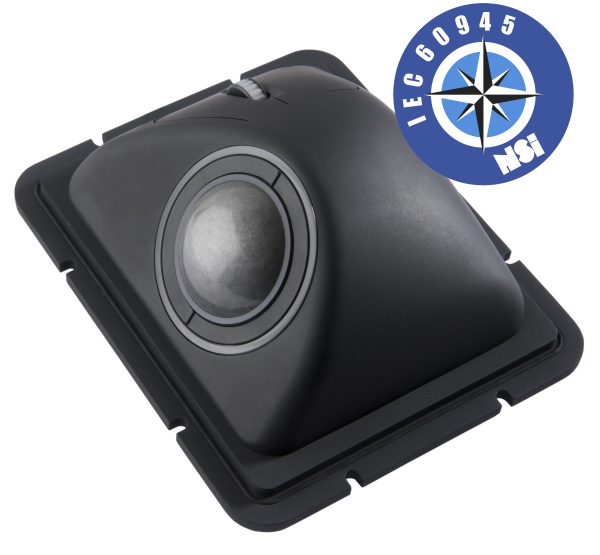

IEC60945 MARINE ERGONOMIC 50 MM TRACKBALL
The E50 Series desktop trackball is an extremely high specification device that incorporates the latest IP68 technology. The trackball combines the patented optical trackball technology with the new hall-effect scroll wheel to provide a fully waterproof desktop trackball solution. To compliment these two technologies the trackball also includes left, middle, and right switch functionality as found in all conventional desktop trackballs/mice making the E50 trackball a complete human interface solution for control of a cursor.
In the standard configuration the E50 Series is supplied with a black soft touch case, USB and PS/2 output, and a grey scroll wheel. The ergonomic trackball is available as desktop or as panel mount unit. The freestanding desktop device optimizes desk space when compared to a mouse. The panel mount unit has been designed as part of OEM keyboards and consoles.
Mô tả
MECHANICAL SPECIFICATIONS
- UNIT
Weight: ~500 grams
Case material: PC/ABS
Case colour/finish: Black/soft touch - TRACKBALL MODULE
Ball size/material: Ø50.8mm (2″)/Epoxy resin, metallic grey
Tracking force: 30-80 grams – PTFE seal
Ball load: 200N (20Kg) maximum downward pressure for 2 minutes @ 20°C
Resolvable ball speed: 30 IPS (inches per second)
Tracking engine: Infra-red optical navigation technology
Removable ring style/color: Bayonet style locking ring/black - SCROLL WHEEL
Wheel diameter: Ø25mm
Wheel material: PC/ABS
Wheel colour: Grey – various colours available
Encoding technology: Hall effect
Magnet strength: N42
Detent-scrolling force: 30 grams nominal
Switch actuation force: 275 ± 125 grams force - LEFT/RIGHT SWITCH
Switch actuation force: 150 ± 50 grams force

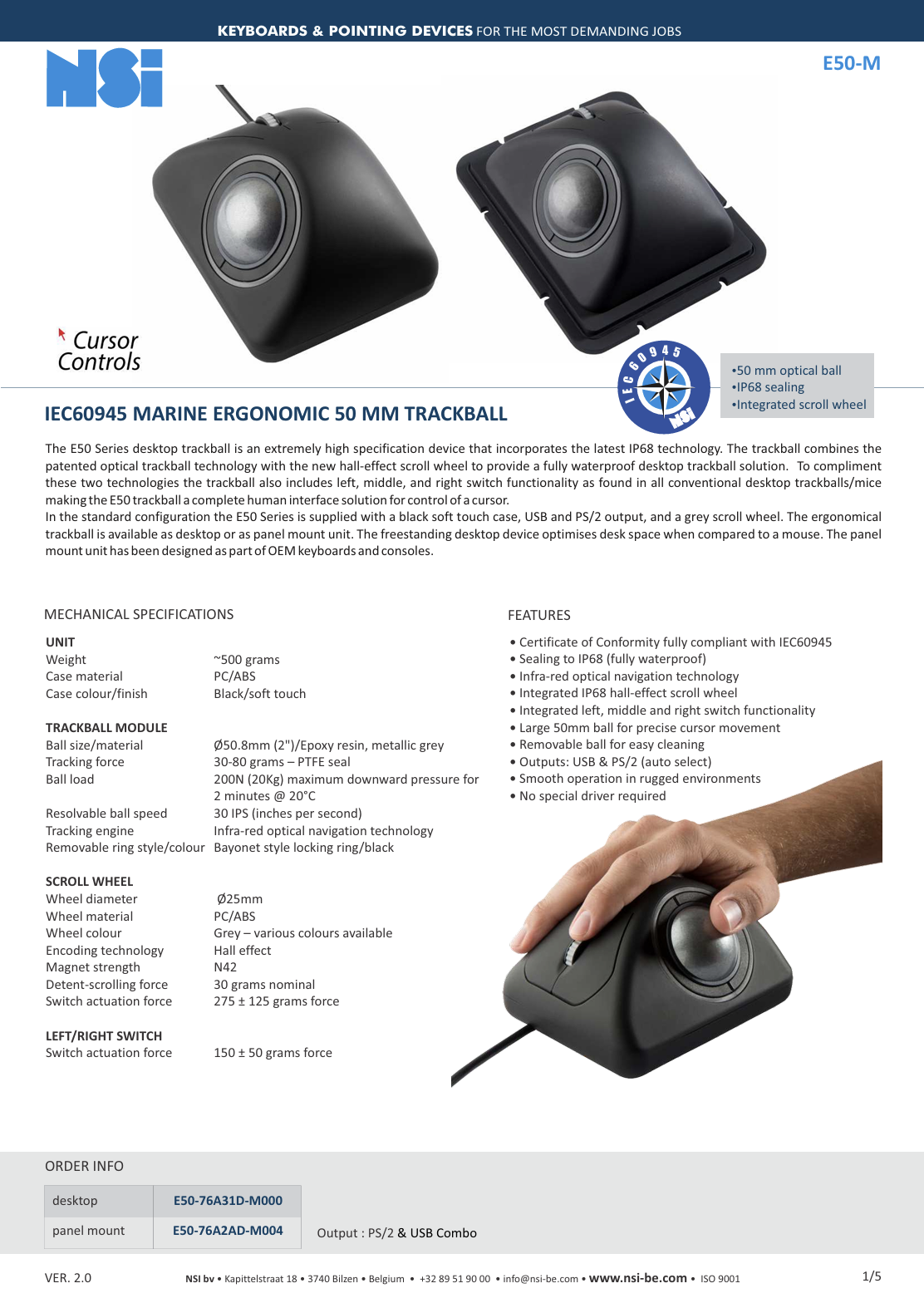

Dưới đây là chi tiết thông số kĩ thuật: iec60945-e50-marine-ergonomic-trackball
