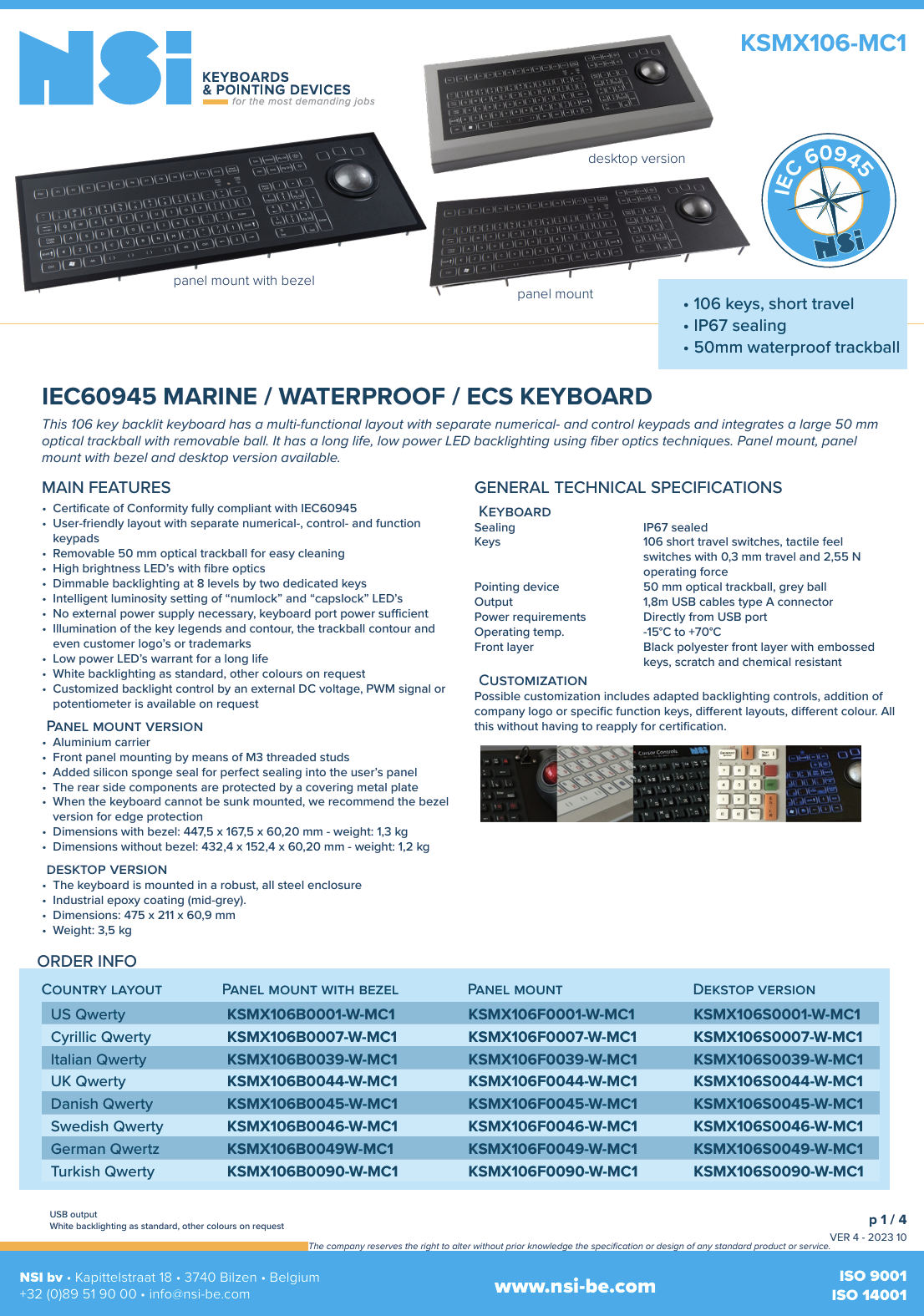

IEC60945 MARINE / WATERPROOF / ECS KEYBOARD

This 106 key backlit keyboard has a multi-functional layout with separate numerical- and control keypads and integrates a large 50 mm optical trackball with removable ball. It has a long life, low power LED backlighting using fiber optics techniques. Panel mount, panel mount with bezel and desktop version available.

MAIN FEATURES

• Certificate of Conformity fully compliant with IEC60945

• User-friendly layout with separate numerical-, control- and function keypads

• Removable 50 mm optical trackball for easy cleaning

• High brightness LED’s with fibre optics

• Dimmable backlighting at 8 levels by two dedicated keys

• Intelligent luminosity setting of “numlock” and “capslock” LED’s

• No external power supply necessary, keyboard port power sufficient

• Illumination of the key legends and contour, the trackball contour and even customer logo’s or trademarks

• Low power LED’s warrant for a long life

• White backlighting as standard, other colours on request

• Customized backlight control by an external DC voltage, PWM signal or potentiometer is available on request

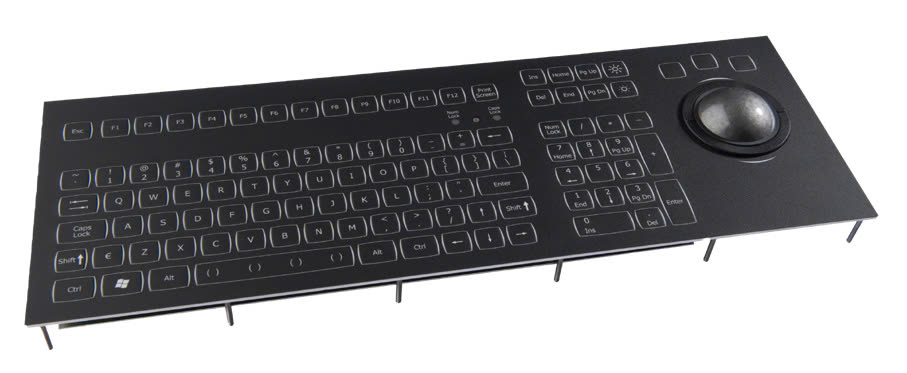

PANEL MOUNT VERSION

• Aluminium carrier

• Front panel mounting by means of M3 threaded studs

• Added silicon sponge seal for perfect sealing into the user’s panel

• The rear side components are protected by a covering metal plate

• When the keyboard cannot be sunk mounted, we recommend the bezel version for edge protection

• Dimensions with bezel: 447,5 x 167,5 x 60,20 mm – weight: 1,3 kg

• Dimensions without bezel: 432,4 x 152,4 x 60,20 mm – weight: 1,2 kg

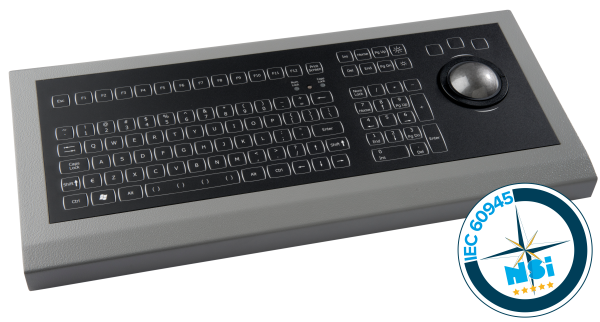

DESKTOP VERSION

• The keyboard is mounted in a robust, all steel enclosure

• Industrial epoxy coating (mid-grey)

• Dimensions: 475 x 211 x 60,9 mm

• Weight: 3,5 kg
