BACKLIT WATERPROOF KEYBOARD WITH ERGONOMIC TRACKBALL

Multi-functional keyboard with separate numerical and control keys, complemented by an integrated ergonomic 38mm optical trackball. This keyboard offers unparalleled convenience and precision for a wide range of applications. A perfect synergy of advanced technology and ergonomic design. Panel mount and desktop version available.

MAIN FEATURES

• Sealing to IP67
• User-friendly layout with separate numerical-, control- and function keypads
• Long-lasting low power LED’s with high brightness
• Dimmable backlighting at 8 levels by two dedicated keys
(FN key + arrow up/down)
• Intelligent luminosity setting of “numlock” and “capslock” LED’s
• Trackball with left, middle and right switch functionality
• Integrated IP68 hall-effect scroll wheel
• Infra-red optical navigation technology
• Removable 38mm ball for easy cleaning
• No external power supply necessary
• No special driver required

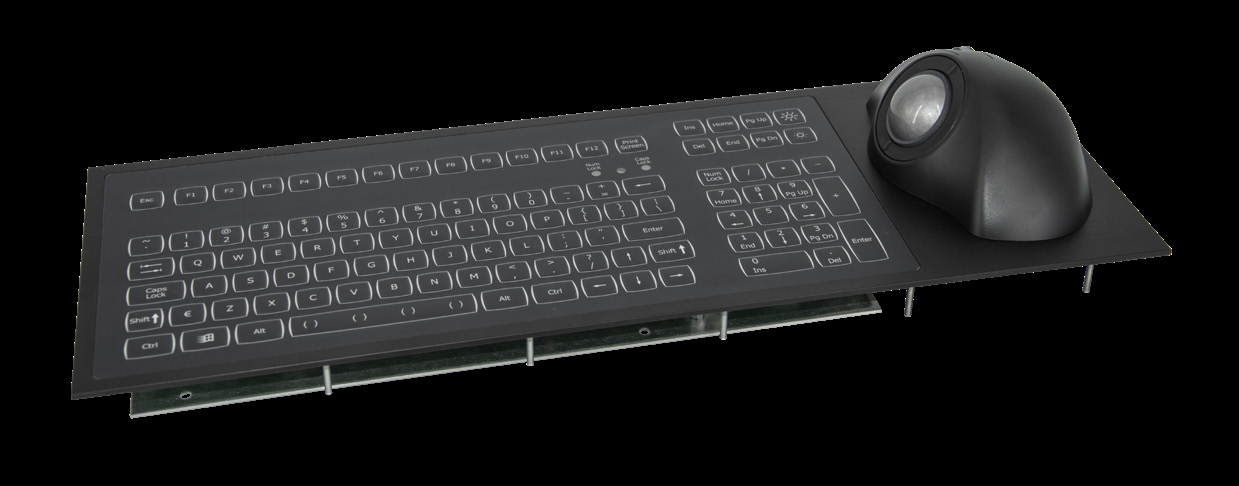

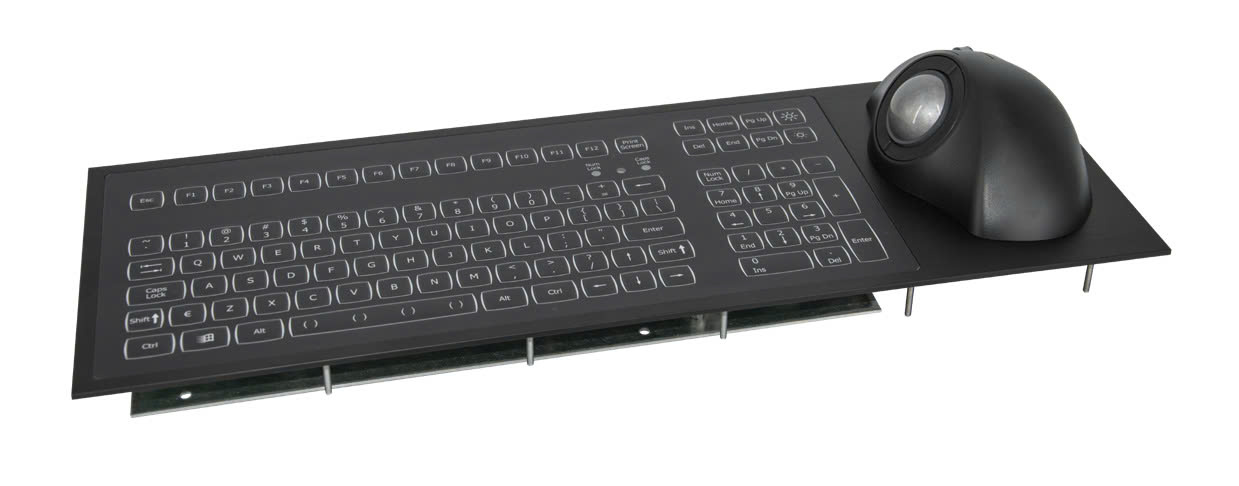

PANEL MOUNT VERSION

• Aluminium carrier and silicone sponge panel sealing
• Front panel mounting by means of M3 threaded studs.
• Added silicon sponge seal for perfect sealing into the user’s panel
• The rear side components are protected by a covering metal plate
• Bezel for edge protection
• Dimensions: 464,50 × 167,50 × 78,20 mm
• Weight: 1.2 kg

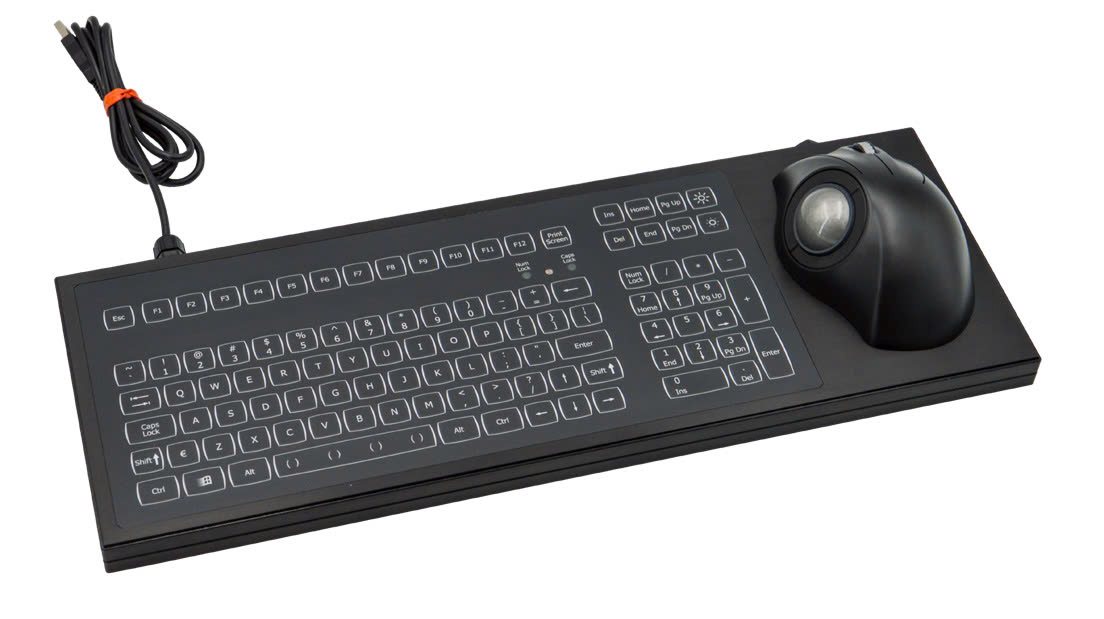

DESKTOP VERSION

• The keyboard is mounted in a robust, all steel enclosure
• Industrial epoxy coating (mid-grey).
• Dimensions: 468 × 171 × 73mm
• Weight: 1.4 kg

GENERAL TECHNICAL SPECIFICATIONS

KEYBOARD
Sealing
IP67 sealed
Keys
103 short travel switches, tactile feel switches with
0,3 mm travel and 2,55 N operating force
Output
1.8m USB cable type A connector
Power requirements
Directly from USB port
Operating temp.
-15°C to +60°C
Front layer
Black polyester front layer with embossed keys, scratch and chemical resistant

TRACKBALL
Housing material
PC/ABS
Housing colour/finish
Black/fine-textured finish
Base plate material
Aluminium
Base plate finish
Bead blasted & clear anodised
Ball size/material
Ø38.1mm (1.5”) Epoxy resin
Tracking force
20 grams nominal – damper ring seal
30-80 grams – PTFE seal
Ball load
100N (10Kg) maximum downward pressure
for 2 minutes @ 20°C
Resolvable ball speed
30 IPS (inches per second)
Tracking engine
Infra-red optical navigation technology
Removable ring
PC/ABS, black

SCROLL WHEEL
Wheel diameter
Ø25mm
Wheel material
PC/ABS
Wheel colour
Grey
Encoding technology
Hall effect
Magnet strength
N42
Detent-scrolling force
30 grams nominal
Switch actuation force
275 ± 125 grams force

LEFT/RIGHT SWITCH
Switch actuation force
250 ± 100 grams force
