IEC 60945 MARINE COMPACT KEYBOARD
103 key compact backlit short travel keyboard. The keyboard has a multi-functional layout with separate numerical- and control keypads. Panel mount version available.
MAIN FEATURES
-
Certificate of Conformity fully compliant with IEC60945
-
User-friendly layout with separate numerical-, control- and function keypads
-
High brightness LED’s with fibre optics
-
Illumination of the key legends and contour
-
Low power LED’s warrant for a long life
-
No external power supply necessary, keyboard port power sufficient
-
Dimmable backlighting at 8 levels by two dedicated keys
-
Intelligent luminosity setting of “numlock” and “capslock” LED’s
-
White backlighting as standard, other colours on request
-
Customized backlight control by an external DC voltage, PWM signal or potentiometer is available on request
Mô tả
PANEL MOUNT VERSION WITH BEZEL FOR EDGE PROTECTION
- Aluminium carrier
- Front panel mounting by means of M3 threaded studs
- Added silicon sponge seal for perfect sealing into the user’s panel
- The rear side components are protected by a covering metal plate
- Dimensions: 358,7 x 165,8 x 28,1 mm
- Weight: 1,1 kg
GENERAL TECHNICAL SPECIFICATIONS
Sealing: IP67 sealed
Keys: 103 short travel switches, tactile feel switches
Output: 1,6 m USB cable
Power requirements: Directly from USB port
Operating temp.: -15°C to +70°C
Front layer: Black polyester front layer with embossed keys, scratch and chemical resistant
CONNECTIVITY
One 1,6 m shielded USB cable.
COMBINATION
The KSM103Bx-MC1 keyboard is specially designed to be used in combination with the NSI standard trackball, TSX50C1-0BT1-MC3

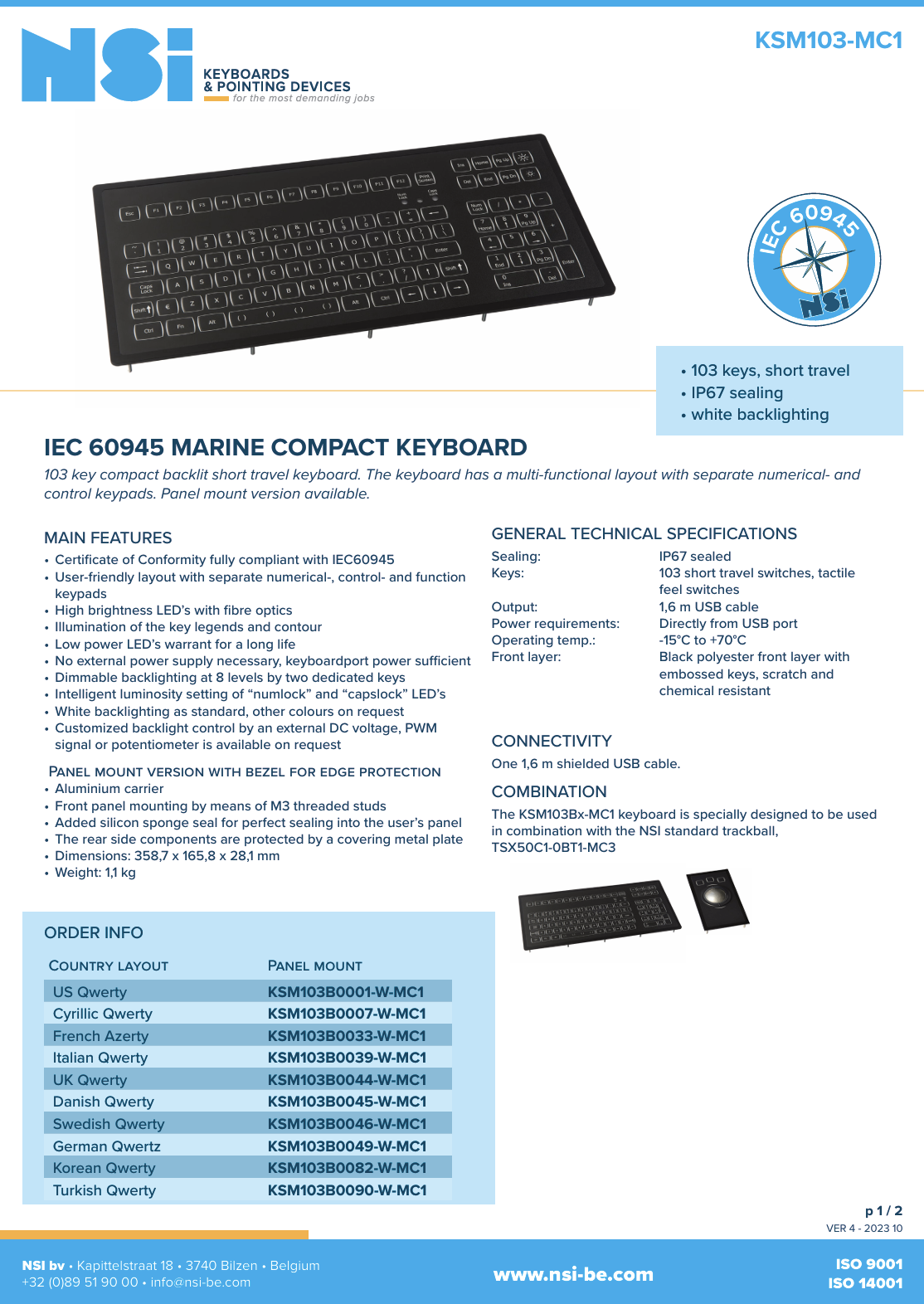

Dưới đây là chi tiết thông số kĩ thuật: iec60945-ksm103-marine-compact-keyboard-ver5
