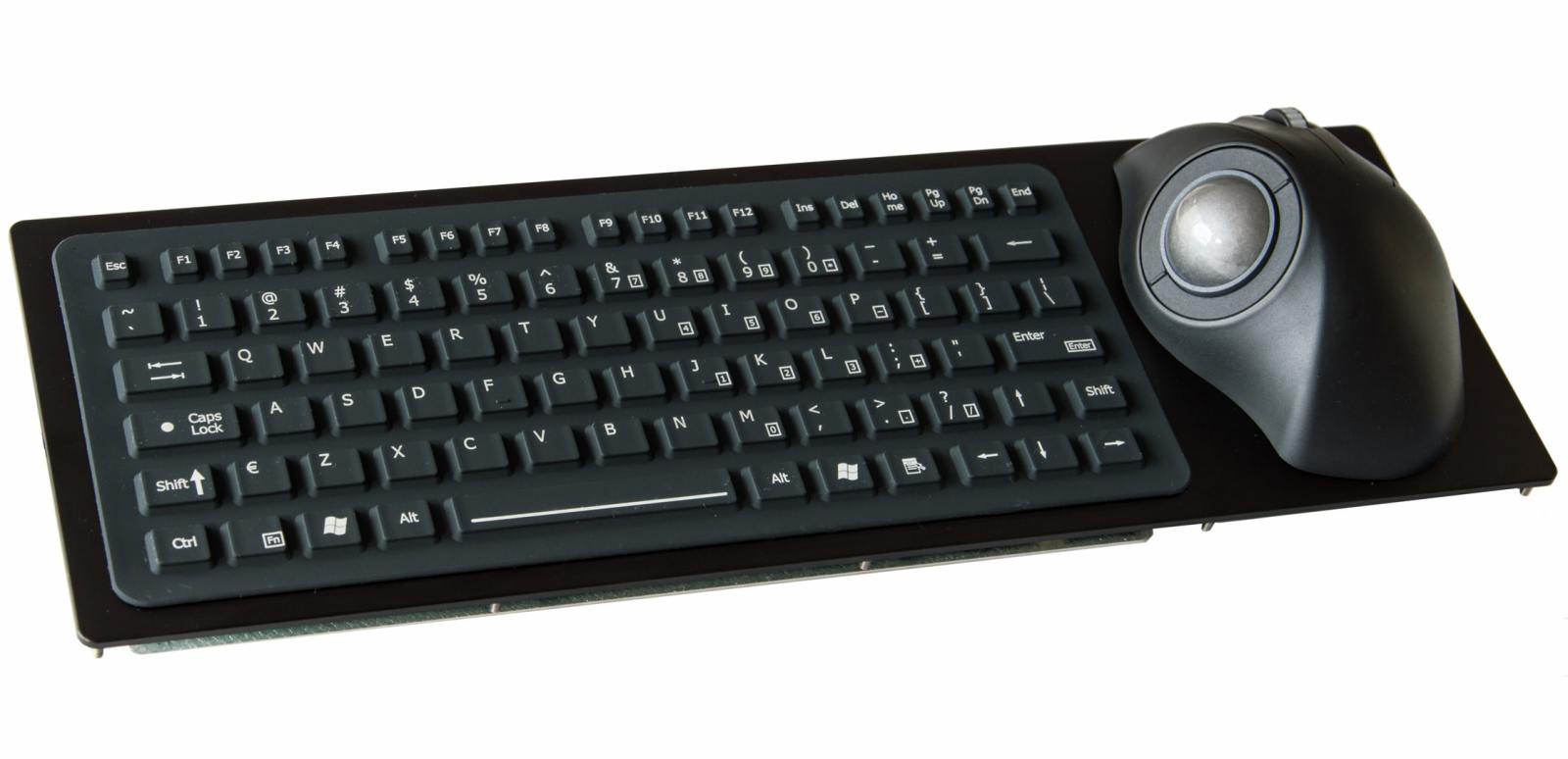

COMPACT RUBBER KEYBOARD WITH ERGONOMIC TRACKBALL
This 85 key backlit keyboard features a compact keyboard with integrated waterproof 38 mm ergonomic trackball with scroll wheel. The rubber keys are proven for efficient cleaning, reduced disinfection time and protection against cross contamination. The backlit keys warrant for optimized performance while working in low-light environments. Panel mount and desktop version available.
Mô tả
MAIN FEATURES
• Compact layout, 85 full travel keys
• 38 mm waterproof ergonomic trackball with hall-effect scroll wheel
• Removable ball for easy cleaning
• Dimmable backlighting at 8 levels by two dedicated keys (FN key + arrow up/down)
• No external power supply necessary, keyboard port power sufficient
• Low power LED’s warrant for a long life
• White backlighting as standard, other colours on request
• Compact thickness
PANEL MOUNT VERSION
• Front panel mounting with M3 stud, 10 x M3 x 15 mm
• Dimensions: 415 x 145 x 79 mm
• Weight: 0,7 kg
DESKTOP VERSION
• ABS enclosure
• Dimensions: 420 x 150 x 68,22 mm
• Weight: 1,2 kg
CUSTOMIZATION
Possible customization includes adapted backlighting controls, addition of company logo or specific function keys, different layouts, different colour.
GENERAL TECHNICAL SPECIFICATIONS
KEYBOARD
Sealing IP67 sealed frontal
Keys 85 full travel rubber keys
Pointing device 38 mm ergonomic trackball
Output 1,6 m USB cable
Power requirements Directly from USB port
Operating temp. -15°C to +70°C
Storage temp. -40°C to +85°C
Switch force 300 grams ± 100 grams
Switch stroke 1,5 mm
Lifetime switches 1 million actuations
TRACKBALL
Ball size/material Ø38.1 mm (1.5”) Epoxy resin
Tracking force 30 – 80 grams – PTFE seal
Ball load 100N (10 kg) maximum downward pressure for 2 minutes @ 20°C
Resolvable ball speed 30 IPS (inches per second)
Tracking engine Infra-red optical navigation technology
Removable ring PC/ABS, black
SCROLL WHEEL
Wheel diameter Ø25 mm
Wheel material PC/ABS
Wheel colour Grey
Encoding technology Hall effect
Magnet strength N42
Detent-scrolling force 30 grams nominal
Switch actuation force 275 ± 125 grams force
LEFT/RIGHT SWITCH
Switch actuation force 250 ± 100 grams force
