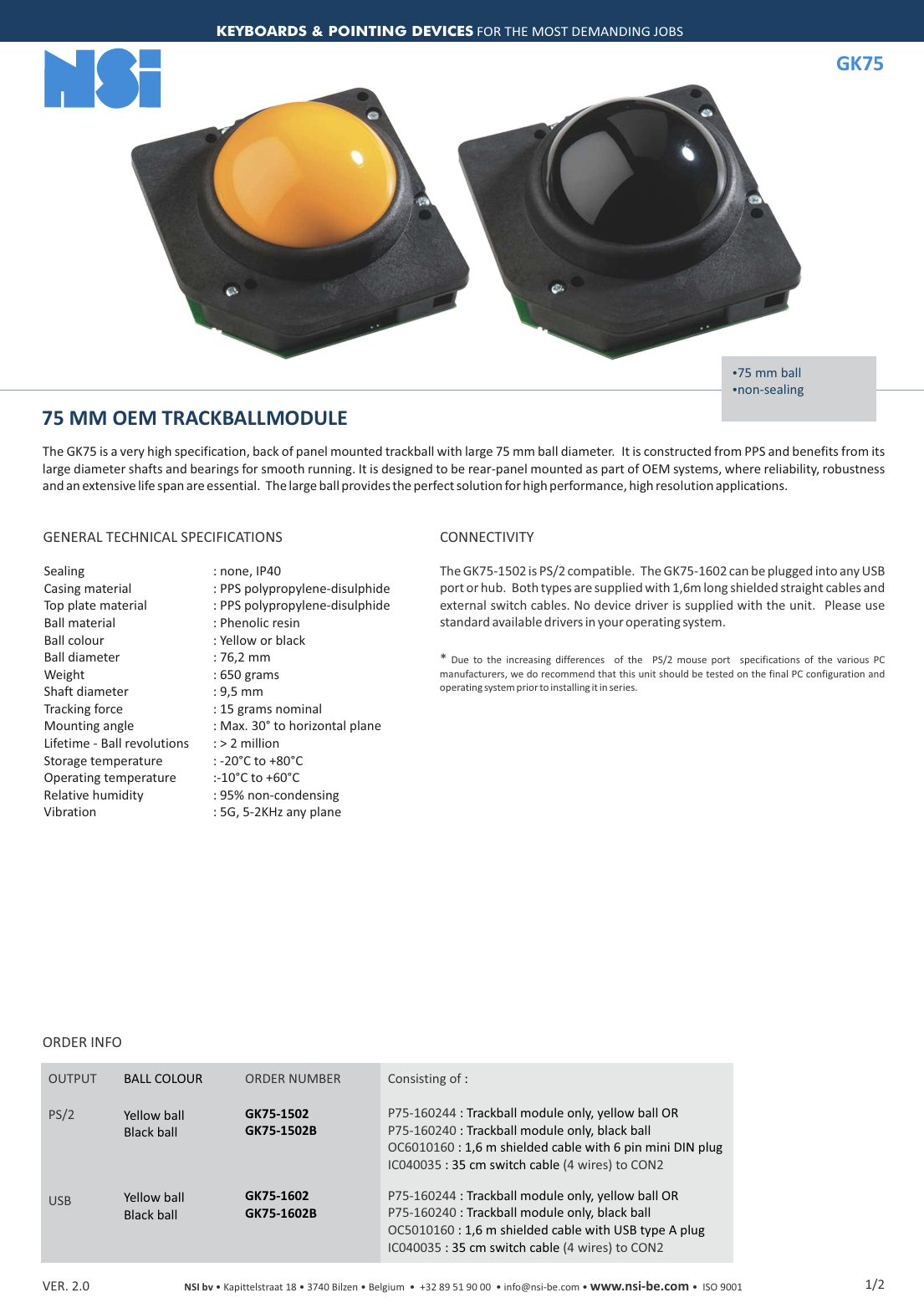

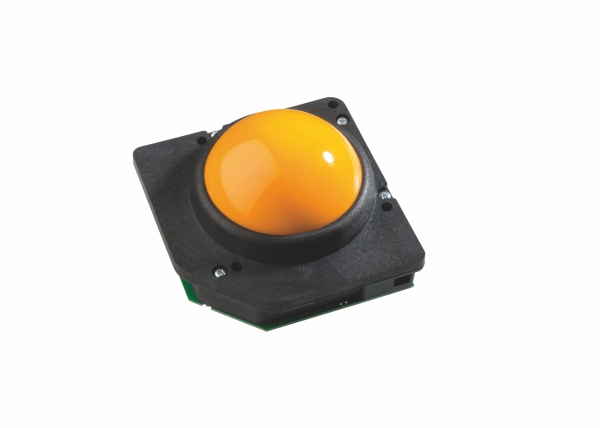

75 MM OEM TRACKBALLMODULE
The GK75 is a very high specification, back of panel mounted trackball with large 75 mm ball diameter. It is constructed from PPS and benefits from its large diameter shafts and bearings for smooth running. It is designed to be rear-panel mounted as part of OEM systems, where reliability, robustness and an extensive life span are essential. The large ball provides the perfect solution for high performance, high resolution applications.
Mô tả
GENERAL TECHNICAL SPECIFICATIONS
- Sealing: None, IP40
- Casing material: PPS polypropylene-disulphide
- Top plate material: PPS polypropylene-disulphide
- Ball material: Phenolic resin
- Ball colour: Yellow or black
- Ball diameter: 76,2 mm
- Weight: 650 grams
- Shaft diameter: 9,5 mm
- Tracking force: 15 grams nominal
- Mounting angle: Max. 30° to horizontal plane
- Lifetime – Ball revolutions: > 2 million
- Storage temperature: -20°C to +80°C
- Operating temperature: -10°C to +60°C
- Relative humidity: 95% non-condensing
- Vibration: 5G, 5-2KHz any plane
CONNECTIVITY
The GK75-1502 is PS/2 compatible. The GK75-1602 can be plugged into any USB port or hub. Both types are supplied with 1,6m long shielded straight cables and external switch cables. No device driver is supplied with the unit. Please use standard available drivers in your operating system.
Due to the increasing differences of the PS/2 mouse port specifications of the various PC manufacturers, we do recommend that this unit should be tested on the final PC configuration and operating system prior to installing it in series.
Dưới đây là chi tiết thông số kĩ thuật: gk75-oem-trackball-module
