COMPACT LED BACKLIT KEYBOARD

Mô tả

MAIN FEATURES

• Sealing to IP67

• Removable 50 mm optical trackball

• High brightness LED’s with fibre optics

• Dimmable backlighting at 8 levels by two dedicated keys

• Intelligent luminosity setting of “numlock” and “capslock” LED’s

• No external power supply necessary

• Illumination of the key legends and contour, the trackball contour and even customer logo’s or trademarks

• Low power LED’s warrant for a long life

• White backlighting as standard, other colours on request

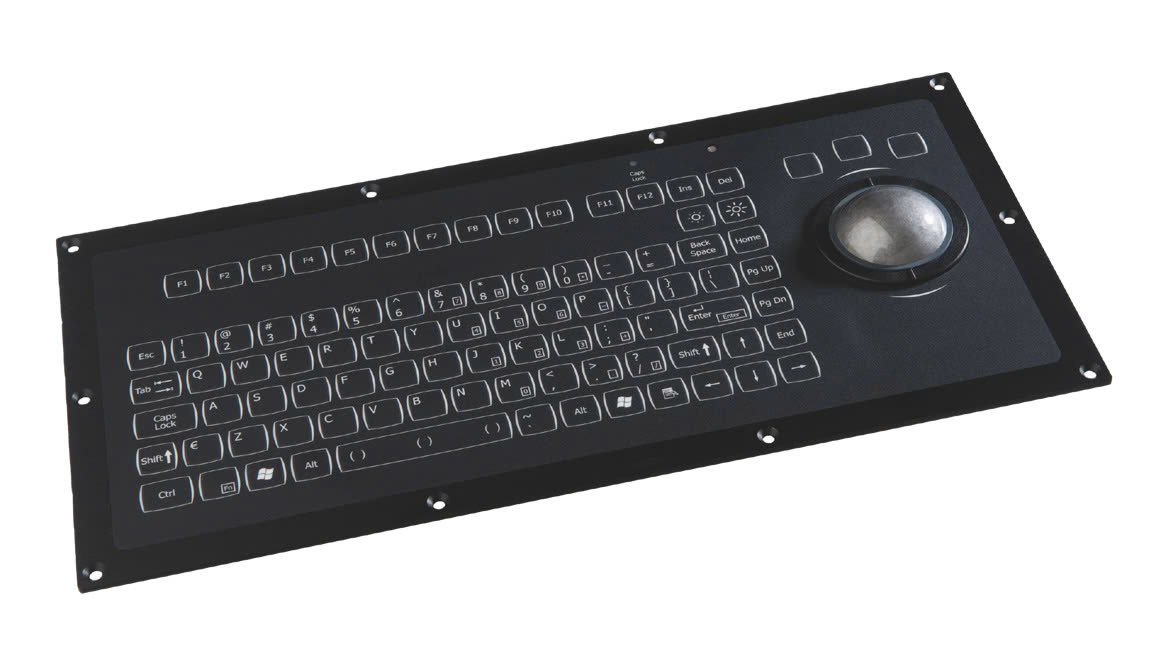

PANEL MOUNT VERSION

• Aluminium carrier and silicone sponge panel sealing

• Front panel mounting with holes (for countersunk M4 screws, not included)

• Optional: silicon sponge seal for perfect sealing into the user’s panel

• The rear side components are protected by a covering metal plate

• Dimensions: 385 x 185 x 50 mm

• Weight: 1,2 kg

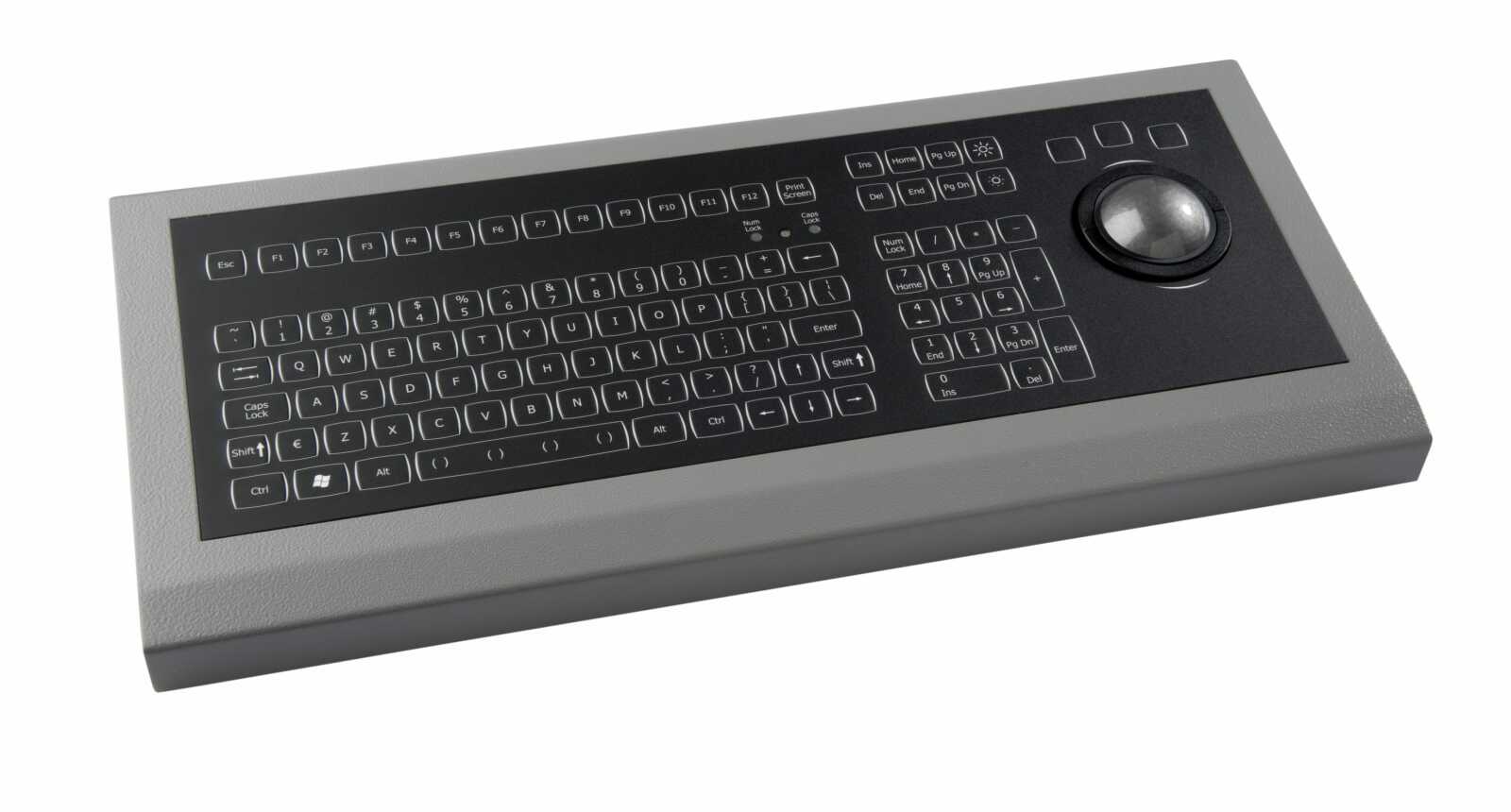

DESKTOP VERSION

• The keyboard is mounted in a robust, all steel enclosure

• Industrial epoxy coating (mid-grey)

• Dimensions: 418 x 246 x 70 mm

• Weight: 3,5 kg

GENERAL TECHNICAL SPECIFICATIONS

KEYBOARD

• Sealing: IP67 sealed

• Keys: 92 short travel switches, tactile feel switches with 0,3 mm travel and 2,55 N operating force

Pointing device

• Type: 50 mm optical trackball, epoxy resin ball

Output

• 1,6m USB cables type A connector

Power requirements

• Directly from USB port

Operating temp.

• 0°C to +60°C

Front layer

• Black polyester front layer with embossed keys, scratch and chemical resistant

CUSTOMIZATION

Possible customization includes adapted backlighting controls, addition of company logo or specific function keys, different layouts, different colour.

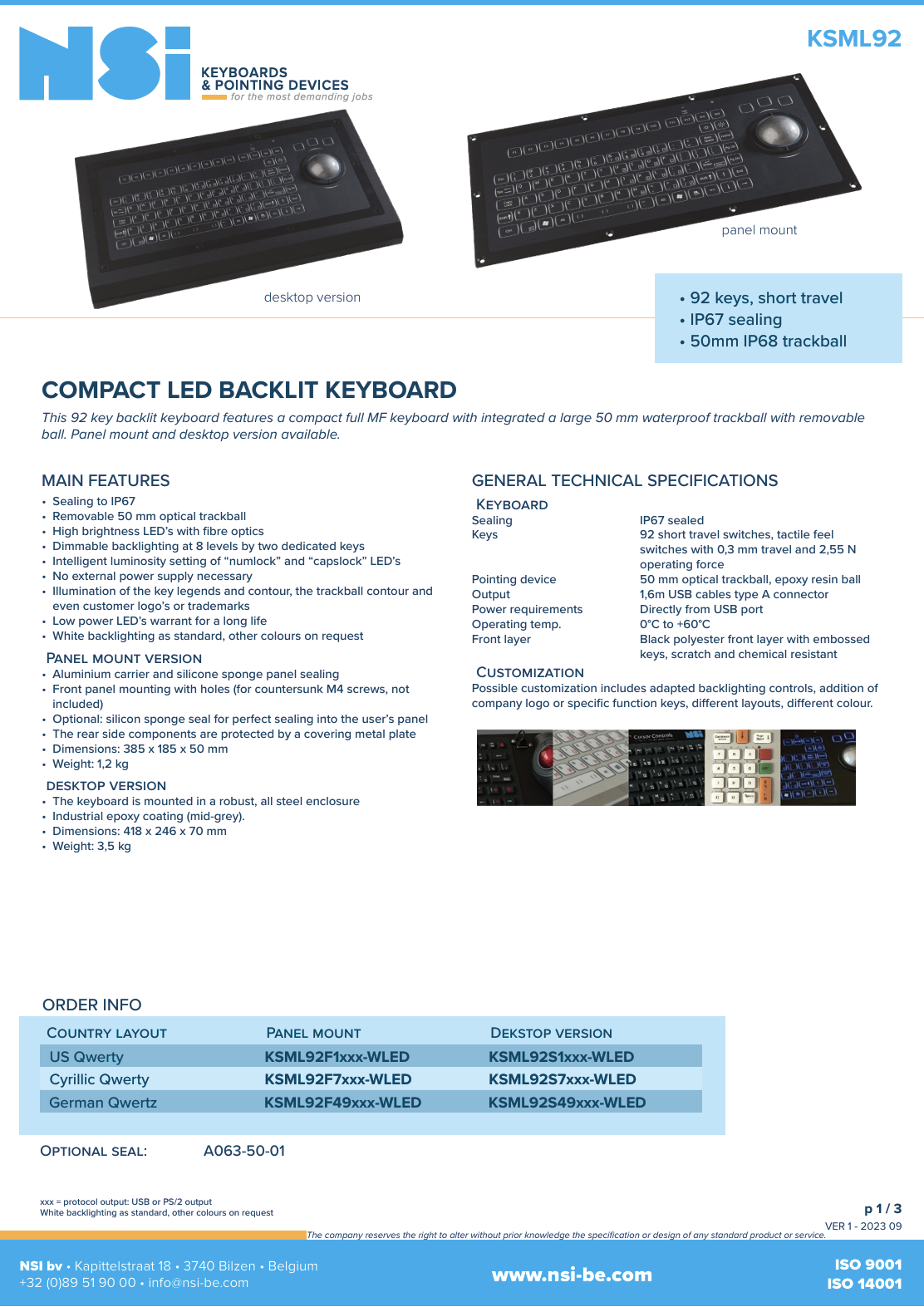

Dưới đây là chi tiết thông số kĩ thuật: ksml92-backlit-led-compact-keyboard-ver4-1
