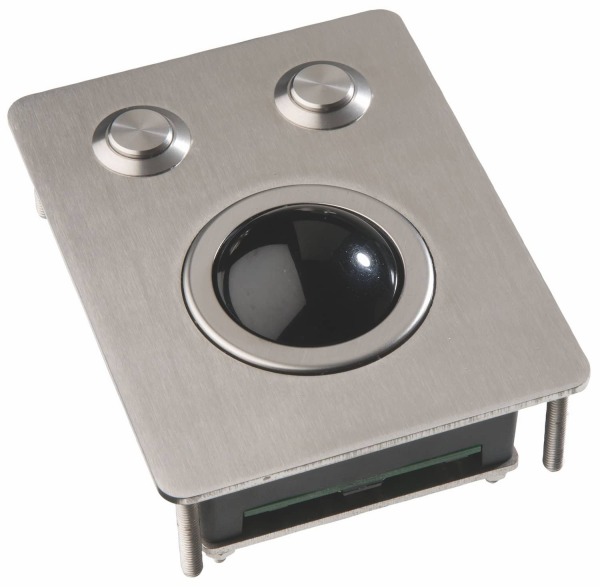

38 MM STEEL OEM TRACKBALLMODULE
The GS38 series are ruggedised professional trackballs for vandalproof applications. The ball and the trim are made of quality stainless steel. The double-sided seal ring provides a sealing to IP65 static (ball in rest). Stainless steel shafts and bearings ensure a solid and precise pointer control. The unit can be used for frontpanel mounting (remove the mounting bracket) or for backpanel mounting.
Mô tả
GENERAL TECHNICAL SPECIFICATIONS
- Sealing: IP65 (static)
- Casing material: ABS / Polycarbonate
- Ball & trim material: Stainless steel
- Ball colour: Black
- Ball diameter: 38,1 mm
- Weight: 300 grams
- Seal material: PTFE
- Shaft diameter: 3 mm
- Tracking force: 65 grams nominal
- Mounting angle: Max. 60° to horizontal plane
- Lifetime – Ball revolutions: > 2 million
- Supply voltage (quadrature): 5 Vdc +/- 5%
- Supply current (quadrature): 10 mA typ
- Storage temperature: -25°C to +80°C
- Operating temperature: -10°C to +60°C
- Relative humidity: 95% non-condensing
- Vibration: 5G, 5-2KHz any plane
CONNECTIVITY
- The GS38-4502 is PS/2 compatible.
- The GS38-4602 can be plugged into any USB port or hub.
- Both types are supplied with 1,6m long shielded straight cables and external switch cables.
- The GS38-4002 has phase quadrature output: X1(Y1) leads X2(Y2) when motion of a ball in positive X(Y) direction.
- No device driver is supplied with the unit. Please use standard available drivers in your operating system.
- It is supplied with a 10-wire connection cable of 35 cm.
OPTIONAL ANTI-VANDAL BACKPLATE
- This additional backplate and mounting spacers enable the unit to absorb a very high level of abuse or impacts.
- When mounted properly by the end-user, this backplate will limit the hostile impacts on the ball to an acceptable level and protect shafts, bearings, and other components of the unit.

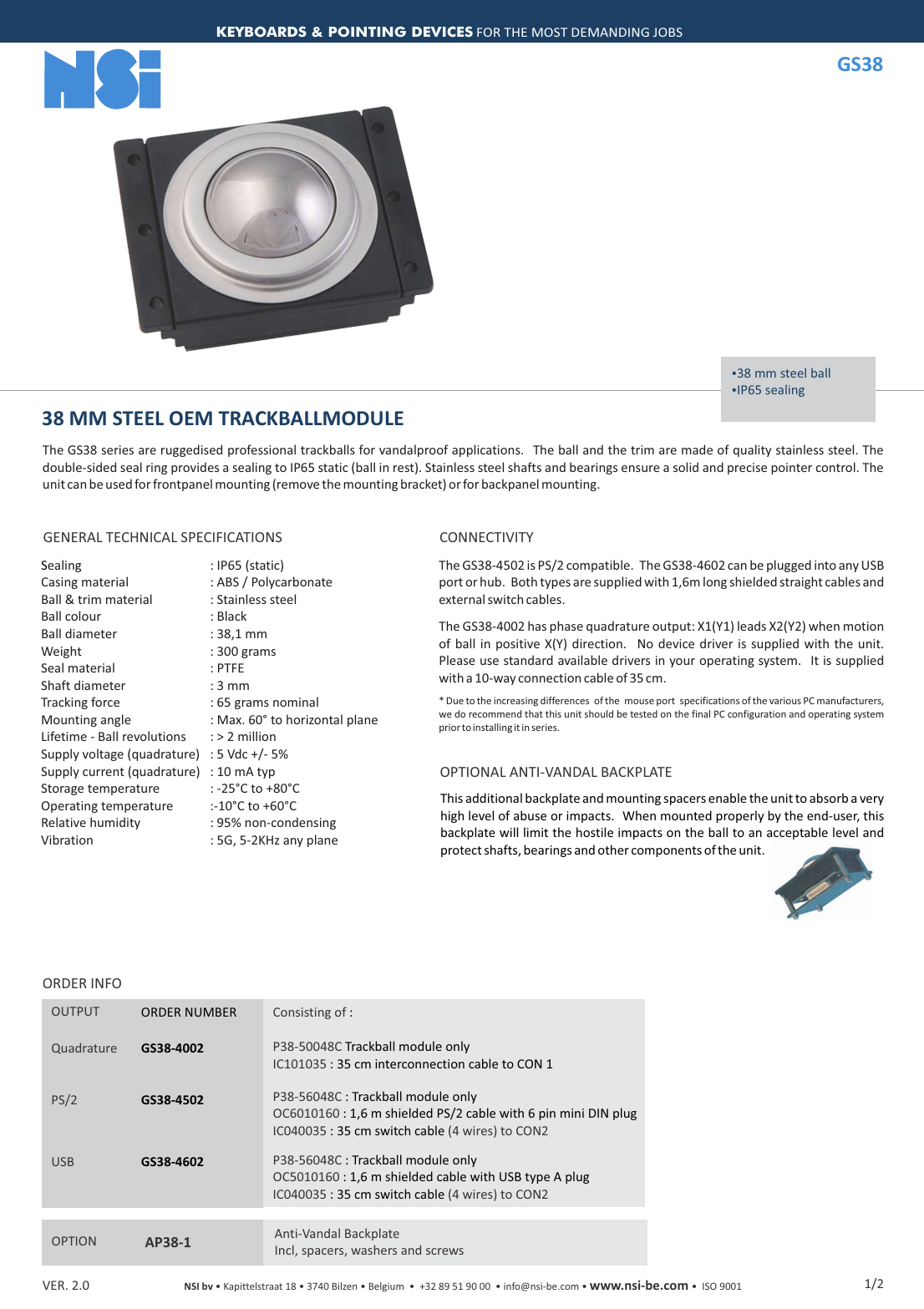

Dưới đây là chi tiết thông số kĩ thuật: gs38-steel-oem-trackball-module
