34 MM OEM TRACKBALLMODULE
0₫
The KB34-1542 is a high specification keyboard or panel mounted trackball with direct PS/2 output. This trackball features ABS construction and high quality shafts and bearings to ensure precision movement. Compact dimensions, four switches and front panel mounting make the KB34 ideal for keyboard, console or process control applications.
Mô tả
GENERAL TECHNICAL SPECIFICATIONS
- Sealing: none IP40
- Casing material: ABS, light-grey colour
- Top plate material: ABS, light-grey colour
- Ball material: Polyester
- Ball colour: Mid-grey colour
- Ball diameter: 34 mm
- Weight: 60 grams
- Shaft diameter: 3 mm
- Tracking force: 7 grams nominal
- Mounting angle: Max. 30° to horizontal plane
- Lifetime – Ball revolutions: > 2 million
- Supply voltage (quadrature): 5 Vdc +/- 5%
- Supply current (quadrature): 6 mA typ
- Storage temperature: -20°C to +66°C
- Operating temperature: -10°C to +60°C
- Relative humidity: 95% non-condensing
- Vibration: 5G, 5-2KHz any plane
CONNECTIVITY
- The KB34-1542 is PS/2 compatible and is supplied with a 1,6 meter long shielded cable with PS/2 plug. No special device driver is required.
- Due to the increasing differences of the PS/2 mouse port specifications of the various PC manufacturers, we do recommend that this unit should be tested on the final PC configuration and operating system prior to installing it in series.

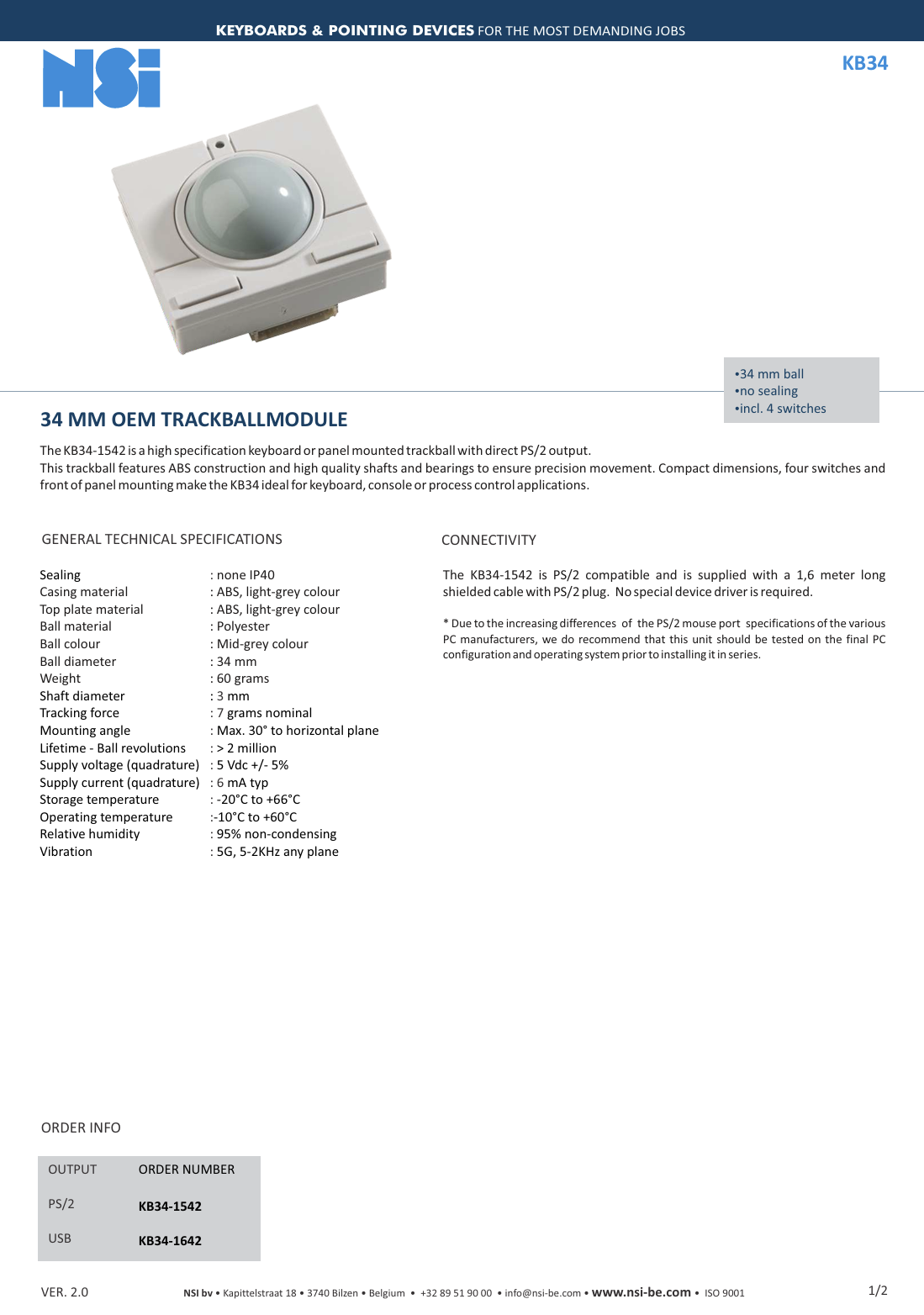

Dưới đây là chi tiết thông số kĩ thuật: kb34-oem-trackball-module
