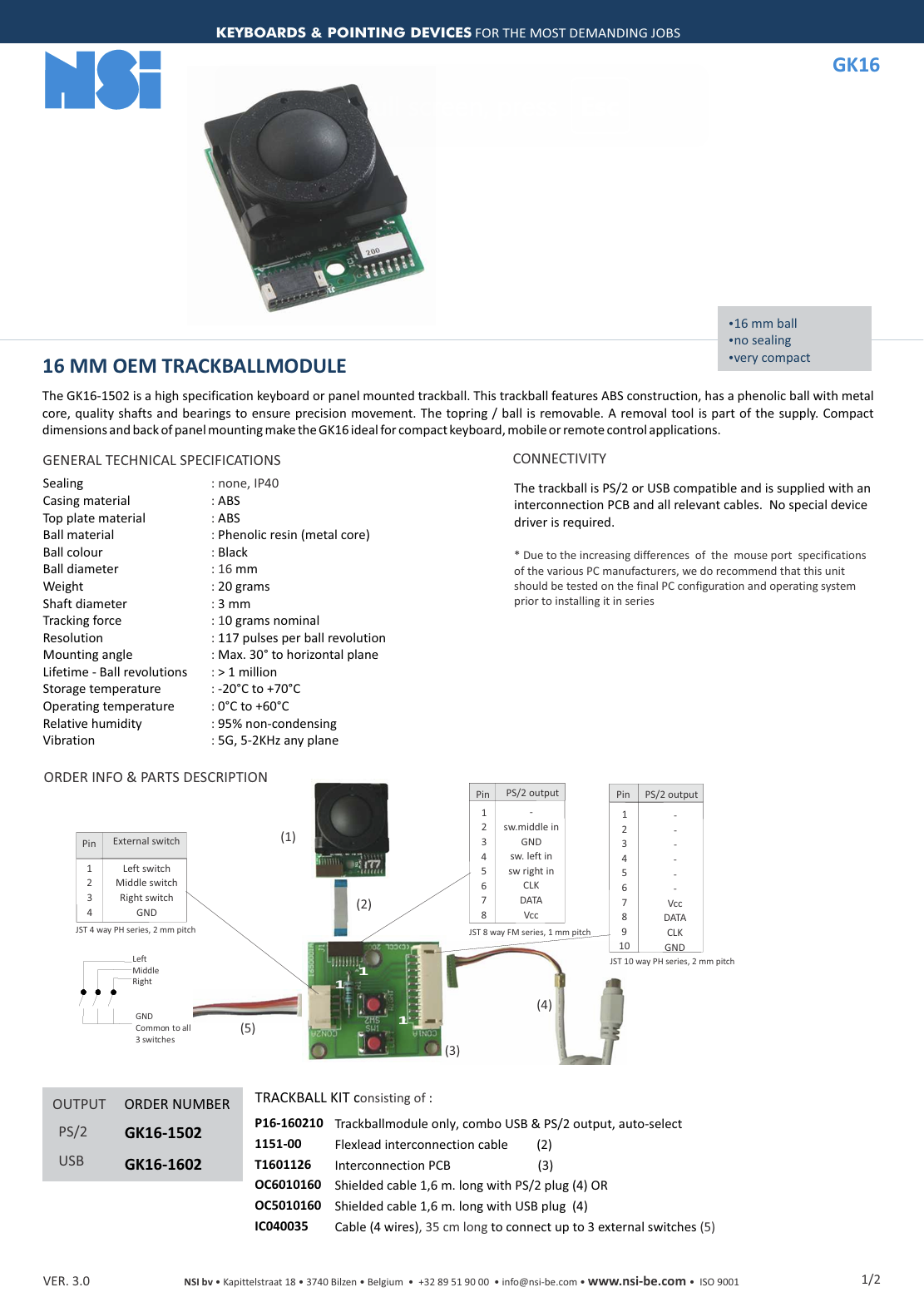

16 MM OEM TRACKBALLMODULE
The GK16-1502 is a high specification keyboard or panel mounted trackball. This trackball features ABS construction, has a phenolic ball with metal core, quality shafts and bearings to ensure precision movement. The top ring / ball is removable. A removal tool is part of the supply. Compact dimensions and back of panel mounting make the GK16 ideal for compact keyboard, mobile or remote control applications.
Mô tả
GENERAL TECHNICAL SPECIFICATIONS
- Sealing: none, IP40
- Casing material: ABS
- Top plate material: ABS
- Ball material: Phenolic resin (metal core)
- Ball colour: Black
- Ball diameter: 16 mm
- Weight: 20 grams
- Shaft diameter: 3 mm
- Tracking force: 10 grams nominal
- Resolution: 117 pulses per ball revolution
- Mounting angle: Max. 30° to horizontal plane
- Lifetime – Ball revolutions: > 1 million
- Storage temperature: -20°C to +70°C
- Operating temperature: 0°C to +60°C
- Relative humidity: 95% non-condensing
- Vibration: 5G, 5-2KHz any plane
CONNECTIVITY
The trackball is PS/2 or USB compatible and is supplied with an interconnection PCB and all relevant cables. No special device driver is required.
Due to the increasing differences of the mouse port specifications of the various PC manufacturers, we do recommend that this unit should be tested on the final PC configuration and operating system prior to installing it in series.
